Architecture

System Context

The Subscription Service is a set of AWS Lambda functions behind the site-subscription-service API Gateway (AWS_IAM authorization). It consumes membership lifecycle events from the User Service and ACH payment outcomes from the Payments Service (both via Kinesis), runs scheduled collection and notification passes from EventBridge rules, reacts to balance events from the Transactions Service, and publishes billing activity changes to the site-subscriptions Kinesis stream.

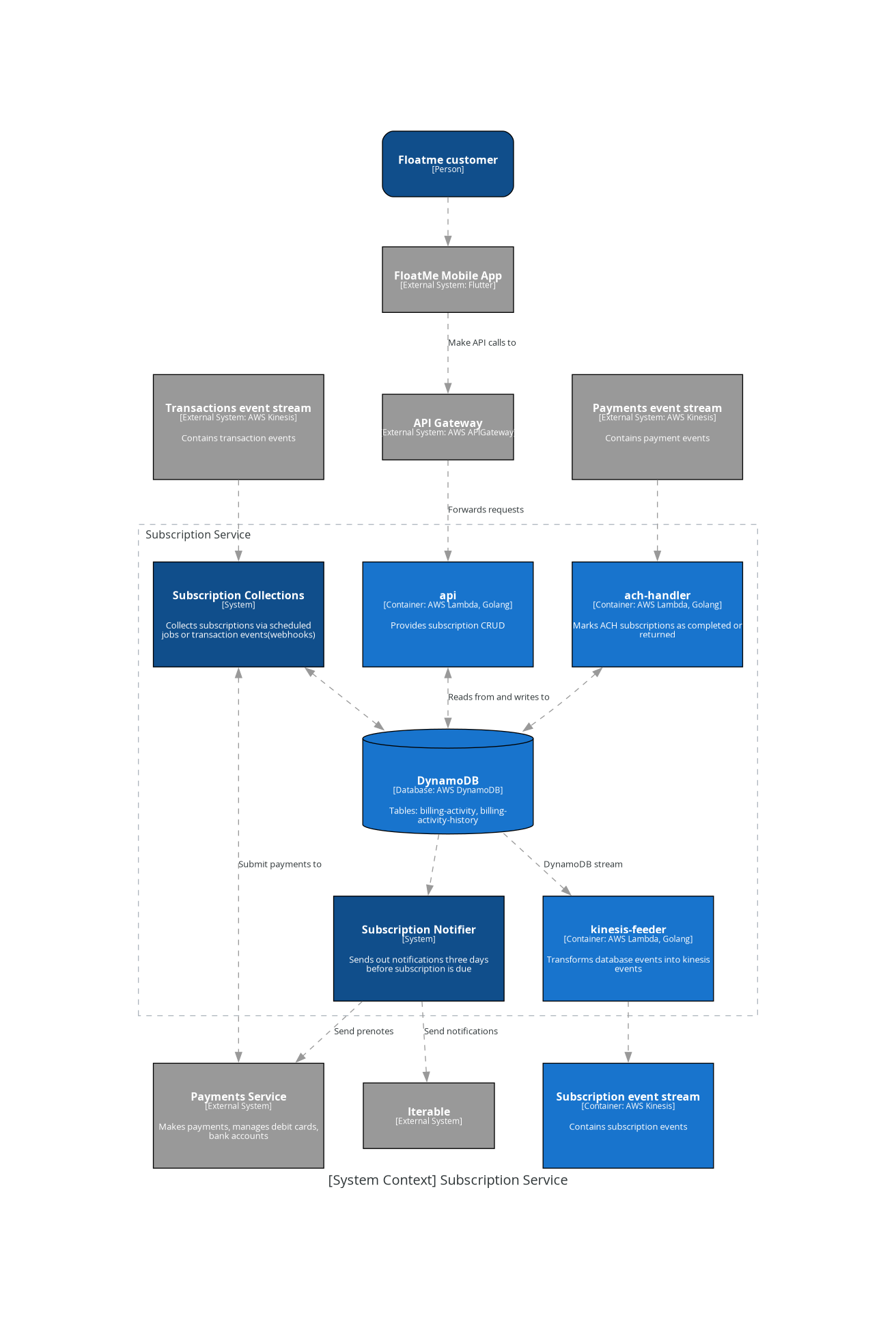

system context

Components

Runtime configuration (memory, timeout, IAM) is in Infrastructure; queue and schedule detail in SQS Queues and EventBridge.

Component Trigger Purpose

site-subscription-service-api

API Gateway site-subscription-service (AWS_IAM)

REST API — activation, reactivation, upgrade/downgrade, manual pay, billing history and details, active term, ban, QA create

site-subscription-service-memberships

Kinesis site-user-service-users (12-type filter)

Drives subscription state transitions from membership lifecycle events — Membership Events

site-subscription-service-ach-handler

Kinesis site-payments (4 subscription debit types)

Maps ACH payment outcomes to billing status transitions; emits user notifications — ACH Processing

site-subscription-service-kinesis-feeder

DynamoDB Stream on billing-activity

Publishes change records to the site-subscriptions Kinesis stream for downstream consumers

site-subscription-service-batch-worker

SQS site-subscription-service-batch-worker

Bulk subscription operations dispatched to the batch queue

site-subscription-service-collections-job

EventBridge rules (Mon–Fri: scheduled, retry, pause) + SQS paging queues

Queries billing-activity for due subscriptions and enqueues them to the three collection work queues — Collections Engine

site-subscription-service-collections-worker

SQS collections-scheduled / -retry / -pause (max concurrency 50)

Executes collection attempts via the Payments Service; applies the ML decider; advances billing status

site-subscription-service-webhook-balance-worker

SQS site-subscription-service-balance-event-tap (EventBridge-routed)

Opportunistic collection on new_account balance events — collections.adoc#webhook-balance

site-subscription-service-notifier-scheduler

EventBridge cron(0 12 ? * * *) (prod only) + SQS paging queue

Enqueues users approaching their billing date to the notifier-worker queue — Notifications

site-subscription-service-notifier-worker

SQS pre-subscription-notifier-worker (max concurrency 5)

Sends pre-subscription notifications via Iterable

The repository also builds the subscription-jobs container image for scheduled batch jobs intended to run as ECS Fargate tasks rather than Lambdas — see Container Images. Job implementations build on the generic batch runner in pkg/jobs: an up-front candidate load fanned through a rate-limited worker pool, per-run counters, DogStatsD job metrics (subscriptions.job.*, filtered by the job: tag), and an in-place-updating Slack run report with breakdown and error-summary thread replies. Per-record errors and panics are counted and reported but never fail the run.

Components that mutate subscription state acquire a per-user distributed lock first — collections-worker, batch-worker, webhook-balance-worker, the memberships handlers (except CLOSEACCOUNT), and manual pay in the api Lambda; the ach-handler writes settlement outcomes without it (locks table).

External Dependencies

Service Role

Payments Service

Executes collection attempts (collections-worker, webhook-balance-worker, manual pay); source of the ACH outcome callbacks on site-payments

User Service

User profile lookups (API, memberships, notifier-worker); source of the membership event stream

Underwriting Service

Recalculation triggered by manual pay

Transactions Service

Bank balance lookups for collection decisions; source of the balance events behind the webhook-balance-worker

Admin Service

Admin notes attached by the ach-handler on certain ACH outcomes

GrowthBook

Feature flags gating collection, pricing, and notification behavior — GrowthBook Flags

SageMaker

subcollection-inference-endpoint-site model backing the ML decider — collections.adoc#ml-decider

EventBridge

Scheduled collection and notifier rules; balance-event routing into the tap queue

Segment

Analytics events from the ach-handler, collections-worker, and webhook-balance-worker

Iterable

Email and in-app notifications from the ach-handler and notifier-worker

AppsFlyer

Mobile attribution events from the ach-handler and webhook-balance-worker

Storage schemas and access patterns are in DynamoDB Tables; collection decision logic is in Collections Engine.
